Our Technology
Electron Beam Welded Technology
Electron beam welding creates a homogeneous, ultra-precise joint between the resistive alloy element and copper terminals. This process produces shunt resistors with exceptionally low TCR, outstanding long-term stability, and reliable performance across millions of thermal cycles.
- Ultra-low resistance values down to 0.00003Ω
- Four-terminal (Kelvin) design eliminates lead resistance errors
- Very low inductance (<0.5nH) for high-frequency environments
- AEC-Q200 qualified for automotive applications
- RoHS and REACH compliant
Product Range
EBW Shunt Resistors
10 product series covering power ratings from 1W to 50W, with resistance values as low as 0.00003 ohms.

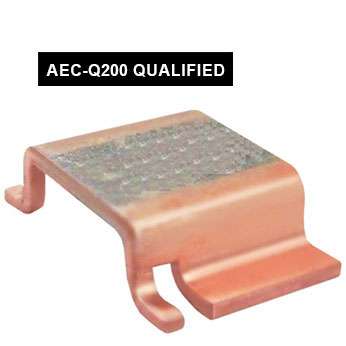

HRE Series
HRE - Size 4026
Power
2W-5W
Resistance
R0002-R005
Tolerance
1%

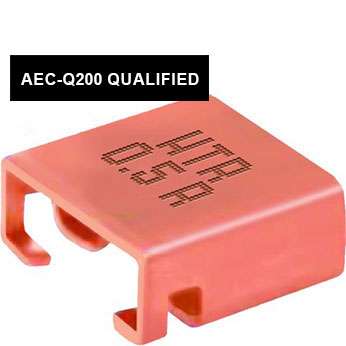

HBE Series
HBE - Size 2726
Power
2W-7W
Resistance
R0002-R005
Tolerance
1%

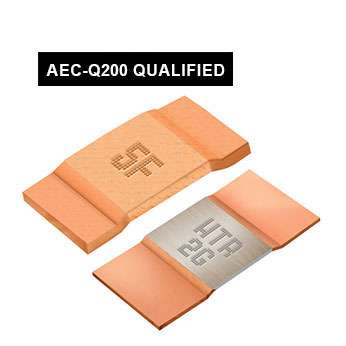

HSE Series
HSE - Size 3920
Power
2W-5W
Resistance
R0000-R005
Tolerance
1%

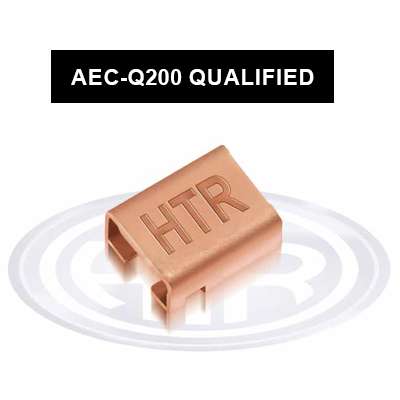

HBM Series
HBM - Size 1216
Power
2W/3W/5W
Resistance
R0003-R003
Tolerance
1%-5%

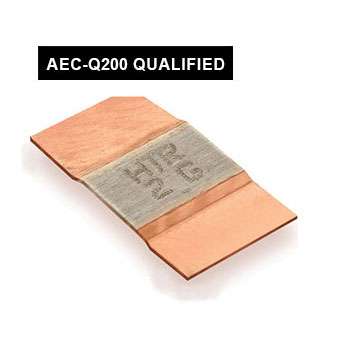

HEE Series
HEE - Size 5930
Power
4W-10W
Resistance
R0001-R002
Tolerance
1%

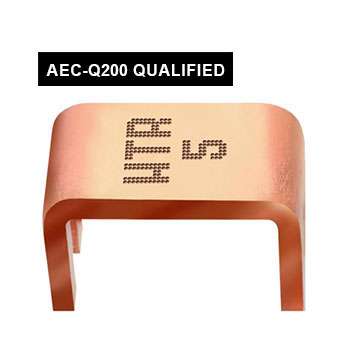

HHE Series
HHE - Size 3820
Power
5W
Resistance
R0003-R002
Tolerance
1%

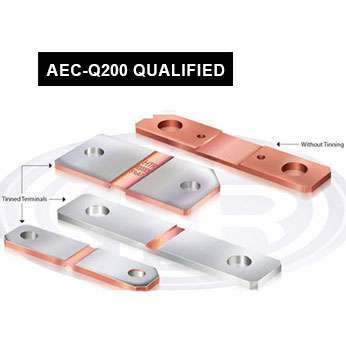

HEB Series
HEB - Low OHM Battery Shunt Resistors
Power
6W-50W
Resistance
R00003-R001
Tolerance
5%/1%/0.5%

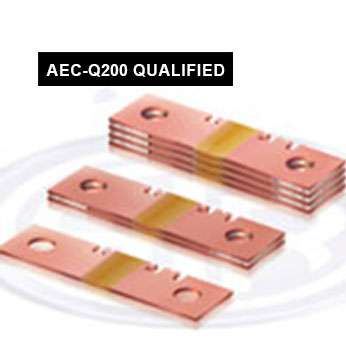

HVE Series
HVE - Power Metal Strip Shunt Resistors For Energy Meters
Power
5W
Resistance
R0001-R0005
Tolerance
1%-10%

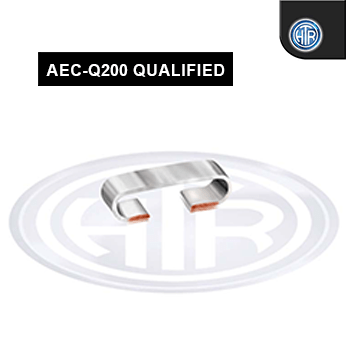

HOS Series
HOS - Size 4512/4524
Power
2W/3W/5W
Resistance
R001-R05
Tolerance
5%/3%/2%/1%

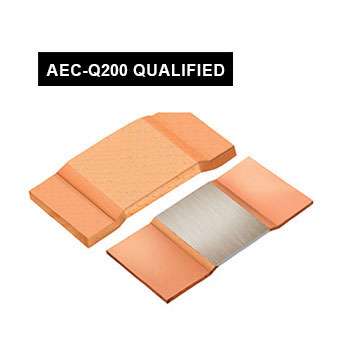

HTE Series
HTE - Size 2512/1206
Power
1W/1.5W/2W/3W
Resistance
R000-R01
Tolerance
1%
